UNIVERSAL DIGITAL / ANALOG AUDIO CONVERTER WITH DOLBY DIGITAL DECODER
The Universal Digital/Analog Audio Converter with Dolby Digital Decoder is a gadget that can convert Optical, Coaxial and L/R audio signals with output sound guarranty. With the ability to convert digital signals into analog and analog signals into digital, this gadget supports the simultaneous conversion of audio formats so when you are converting Optical into L/R audio you can also convert it into Coaxial and enjoy it without pop sound or suddend disappear. Therefore, if you find yourself limited by multiple audio formats, why not consider the Universal Digital/Analog Audio Converter with Dolby Digital Decoder and find out what pure audio sounds like.
- Analog audio to digital audio signal conversion
- Digital audio to analog audio signal conversion with Dolby Digital Decoder
- Simultaneously digital and analog audio output
คุณสมบัติ
- Dolby Digital Decoder technology embedded
- Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
- Integrated Analog –to-Digital Converter (ADC)
- Supports sampling frequencies from 32 to 96kHz
- Provides electromagnetic-noise-free transmission
- Easy to install and operate
- Compact and elegant design

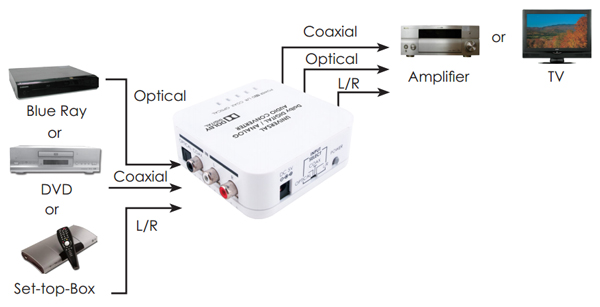

ผังการต่อ
ข้อมูลจำเพาะ
| Input Ports |
Optical, Coaxial and L/R |
| Input Format |
LPCM 2CH and Dolby Digital from Optical/Coaxial |
| Sample Frequency |
32kHz, 96kHz |
| Output Ports |
Coaxial, Optical and L/R |
| L/R Input Impedance |
47KΩ |
| L/R Output Impedance |
600Ω |
| ESD Protection |
Human body model: ± 10kV (air-gap discharge)
± 6kV (contact discharge)
|
| Power Supply |
5V / 1A DC (US/EU standard, CE/FCC/UL certified) |
| Dimensions(mm) |
97(W) x 85(D) x 35(H) |
| Weight(g) |
120 |
| Chassis Material |
Plastic |
| Silkscreen Color |
White |
| Operating Temperature |
0ºC~40ºC / 32ºF~104ºF |
| Storage Temperature |
-20ºC~60ºC / -4ºF~140ºF |
| Power Consumption |
1W |
| Relative Humidity |
20~90% RH (non-condensing)
|
