Manual

APPLICATIONS

Thank you for purchasing the Active Connect Multimedia Transmitter Box (ACMTRB). This product is ideally suited for long distance transmission of your PS3/DVD or Blu Ray devices to an HDMI display. It is operational within 100M at 1080p/8bit and supports HDMI V1.3. The ACMTRB’s digital transmit format allows for no delay or loss of image quality. ACMTRB includes no firmware so it is easy to install and operate. Please follow this manual to begin enjoying the benefit of your ACMTRB. We suggest keeping this manual in a safe place for future reference.

• Designed to support long distance HDMI applications
• Enable high bandwidth communication over lossless media
• Also designed to equalize and restore signals receiver over 75Ωcoaxial cable

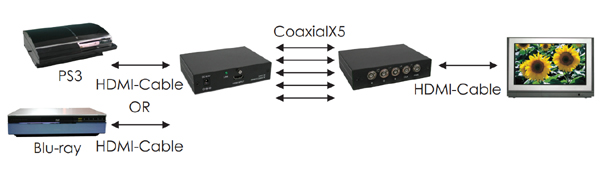

• Simply connect the source to the Transmitter unit, then HDMI output to the display

FEATURES

• Compatible with HDMI 1.3 and DVI 1.1
• Improved color gamut (i.e. deep color xvYCC)
• HD audio (8 channel audio support)
• High Resolutions from PC (640~480) to WUXGA (1920 x 1200)
• HDTV resolutions from 480I~1080P/12 bit
• Built in Consumer electronics control (CEC)
• Supports Deep Color
• Gigabit digital transport needs:
  • HDMI 1.3(Category)/DVI(10.2Gb/s)
  • The RG6 type 75 Ω coaxial cables can operate up to 100m at 10.8Gb/s
• Supports seamless for VESA DDC, CEC, Hot Plug Detect (HPD) and xvYCC
• Easy to install and operate

Note: running off the connected device may result in a loss of performance.

ในแพ็คเกจไม่รวม Receiver
