APPLICATIONS
The HDMI with IP over Single CAT5e/CAT6 Transmitter set is capable of sending HDMI (uncompressed audio/video), 3 Ethernet connections and control signals (through the built-in RS-232 and IR ports) over a single CAT5e/CAT6 cable up to a distance of 100 m (300 ft). The Transmitter can be powered from the receiver via Power over Ethernet (PoE) and the HDMI bypass is designed to allow display of the source signal at the control point.
- Household entertainment sharing and control
- Lecture room display and control
- Showroom display and control
- Meeting room presentation and control
- Classroom display and control
FEATURES
- HDMI 1.4 with 3D format and 4K×2K resolution support
- Supports CEC bypass function
- Simultaneous transmission of uncompressed data over a single 100 m/328 ft with CAT5/CAT6 cable or 80 m/262 ft with CAT5e cable
- Uncompressed video 1080p, 60 Hz, 48-bit, 3D and 4K×2K
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
- Ethernet speed up to 100 Mbps
- Various controls over HDMI CEC, RS232 & IR
- 5Play™ convergence: HDMI & Control (IR & RS232)/LAN/PoE
- Installation friendly
ในแพ็คเกจไม่รวม Receiver

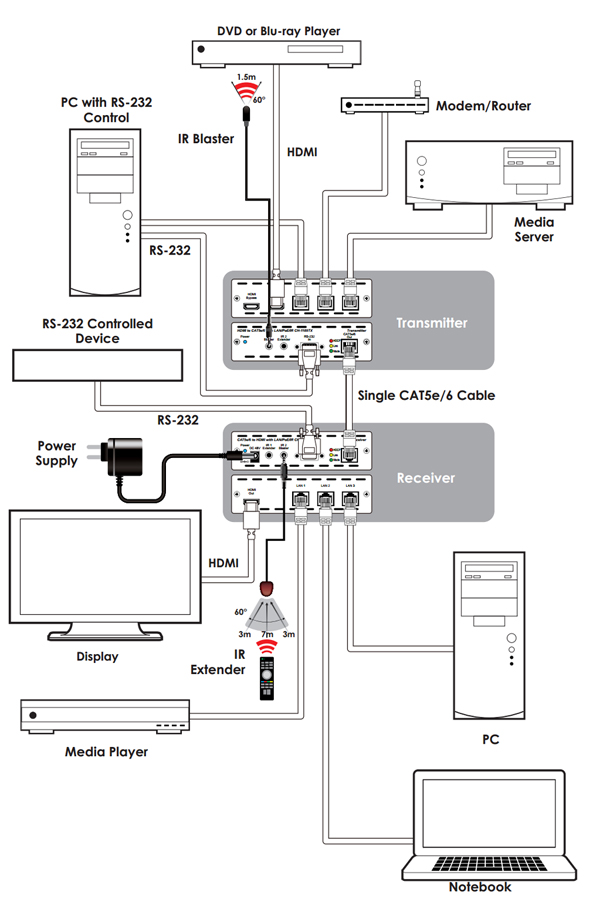

DIAGRAM
SPECIFICATIONS
Transmitter
- Input :1×HDMI , 1×HDMI Bypass, 3×Ethernet, 1×RS-232, 1×IR Extender, 1×IR Blaster
- Output : 1×CAT5e/6
ESD Protection Human Body Model :
- ±8kV (air-gap discharge)
- ±4kV (contact discharge)
Dimensions : 141mm (W)×127mm (D)×38mm (H)/Each
Weight : 525 g/TX
Chassis Material : Aluminum
Silkscreen Color : Silver
Power Consumption : 15 W
Operating Temperature : 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature : −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity : 20~90% RH (non-condensing)
PACKAGE CONTENT
- 1×HDMI/IP over Single CAT5e/6 Transmitter
- 1×IR Blaster
- 1×R Receiver
- 1×48 V/1.35 A DC Power Adaptor
- Operation Manual
