APPLICATIONS

The HDMI 1.3 transmitter over CAT6 is the ideal device to send your HDMI signals over long distances. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can replace HDMI cables while performing the same functions like transferring Deep Color (12-bit/color) video and lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTSHD Master Audio) digital audio. Moreover, you can use the existing remote to control the source and connect it to another transmitter to extend your HDMI signal to distances you never thought possible. This HDMI 1.3 Transmitter is your only choice when looking for an HDMI extender.

• Showroom display/control
• Home entertainment systems
• Commercial displays
• Lecture room display/control

FEATURES

• HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
• Supports digital video formats in Deep Color Mode at up to 36-bit (12-bit/color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio
• Supports CAT6 cables for data/DDC transmission
• Equalizes and recovers any incoming TMDS data before re-transmitting it in flawless quality regardless of the incoming signal
• HDMI cable distance testing showed with 1080p@8/12-bit resolution the Input/Output distance can reach up to 15/15 meters away.
• With CAT6 cable, distance test with 1080p@8/12-bit resolution the I/O source can run up to 45/20 meters away
• Supports CEC bypass and xvYCC
• Includes an IR Receiver and Blaster
• Supports wide range of IR frequencies from 30~50 KHz

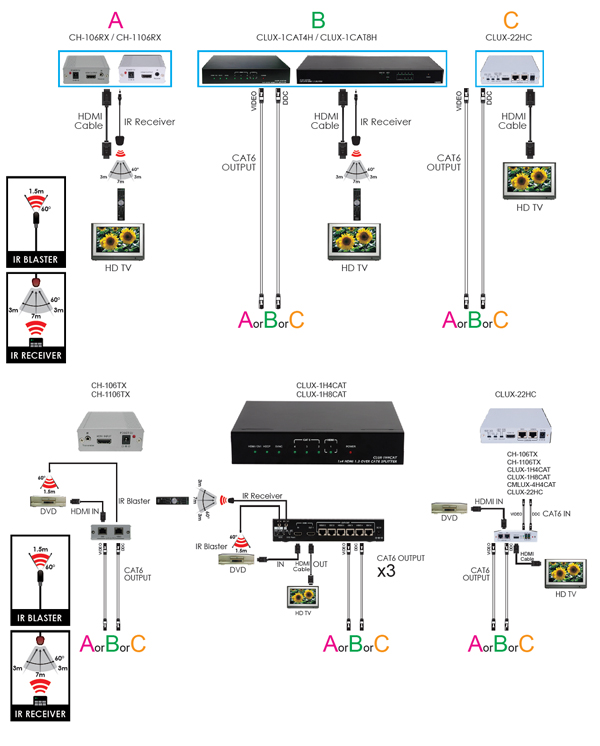

• Can be connected to another transmitter to extend an HDMI signal to an extreme distance
• Supports CEC bypass and xvYCC

Note:

• Cable tested with CAT6/23AWG/Solid, using cables of another type may result in a different operating distance.

• Cable distance tested with the following: PS3 40G, 37" Philips 8 bit LCD TV and 37" Samsung 12 bit LCD TV

• Figures provided in this manual are for reference only, actual performance may depend on the source and display used along with the type of cable.

ในแพ็คเกจไม่รวม Receiver
